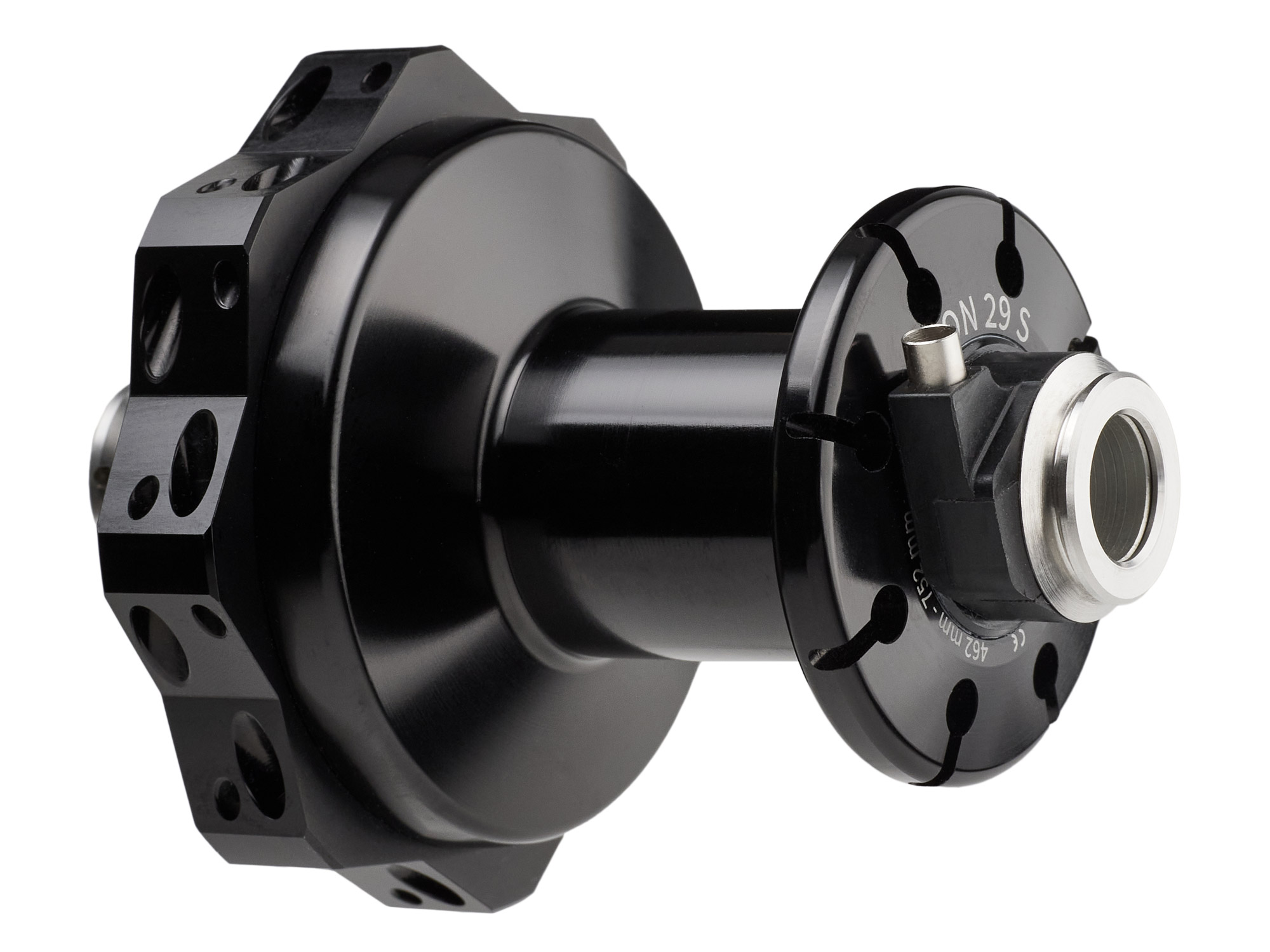

SON 29 S disc 6-bolt
- Especially slim and narrow design
- straight pull spoke pattern (tangential lace pattern on the rotor mount side
and radial lace pattern on the connection side) - Optimized generator design with conforming to German legal regulations approval, also for 29″ wheels
- integrated SON Coaxial Socket for a SON Coaxial Connector
- Higher power output than the SON 28 (suitable for charging applications using a charger)
- For rotors with robust 6-bolt mount
24 spokes (16:8) | 582410 |
---|---|
32 spokes (16:16) | 583210 |
black anodized | |
RRP in D 439,00 € |
For a 12 mm Thru Axle
Weight: 410 g
6 Volt / 3 Watt conforming to German legal regulations (also for 29″ wheels)
SON 29 S disc center lock
- Especially slim and narrow design
- straight pull spoke pattern (tangential lace pattern on the rotor mount side
and radial lace pattern on the connection side) - Optimized generator design with conforming to German legal regulations approval, also for 29″ wheels
- integrated SON Coaxial Socket for a SON Coaxial Connector
- Higher power output than the SON 28 (suitable for charging applications using a charger)
- For rotors with a Shimano center-lock-mount
24 spokes (16:8) | 562410 |
---|---|
32 spokes (16:16) | 563210 |
black anodized | |
RRP in D 439,00 € |
For a 12 mm Thru Axle
Weight: 390 g
6 Volt / 3 Watt conforming to German legal regulations (also for 29″ wheels)
Compact design
A new dynamo model is on the way: You would hardly expect a dynamo in SON 29 S, sleek and narrow as it is. The optimised design of the generator means that nominal data 6 Volt/ 3 Watt are reached at comparartively low speed. This way it complies with German StVZO legal regulations, even for 29“ wheels. Together with smart charging electronics it enables especially high power output.

Straight-pull
A spoke pattern with straight pull spokes achieves the ideal balance between stiffness/load capacity and weight. There is tangential lace pattern on the rotor mount side and radial lace pattern on the side where the connections are. Available is a version with equal spoke counts (16:16) as well as a version with unequal spoke counts (16:8).
Integrated Coax-Socket
The standard version comes with Integrated SON Coaxial Jack Socket for a SON Coaxial Connector. The SON Coaxial Adapter allows an easy and solid connection to SON hub dynamos. With SON Coaxial Connector you can plug and unplug the headlight cable easily when taking out the front wheel. SL Self-Connecting models are also possible.
